CRUISER RAMP

SPECIFICATIONS



OVERALL WIDTH Long or Short Bed Trucks = 41 1/8"
OVERALL IN-BED FRAME LENGTH

5'-6" Long Bed = 65"

6'-6" Long Bed = 73.75"

8' Long Bed = 95.5"

SYSTEM WEIGHT 335 Pounds
ELECTRIC WINCH 3000 Pound Capacity W/ 3/16" Heavy Duty Wire Rope Cable
PLATFORM CASTER WHEELS 6"x2" Black Rubber Wheels with wheel grabbers.
MOTORCYCLE WHEEL CHOCK Locking Wheel Chock. (Ride On-Get Off-Walk Away)
OUTSIDE RAMPS Length = 95.25" Aluminum Ramps
REAR TIRE RAMP Length = 94" Aluminum Ramp with a  1500 Pound Weight Capacity
FRONT AXLE TIE-DOWN STRAPS Ratchet Tie-Down Straps
ACTIVATION SWITCH Handheld Remote Activation Switch W/ 15 Foot Cable. Allows you to be back with, and watch the motorcycle loading and unloading.
SAFETY CHAINS Right and Left Front Safety Chains
FRAME FINISH Black Powder Coat Finish
MOTORCYCLE WEIGHT CAPACITY 1000 Pounds

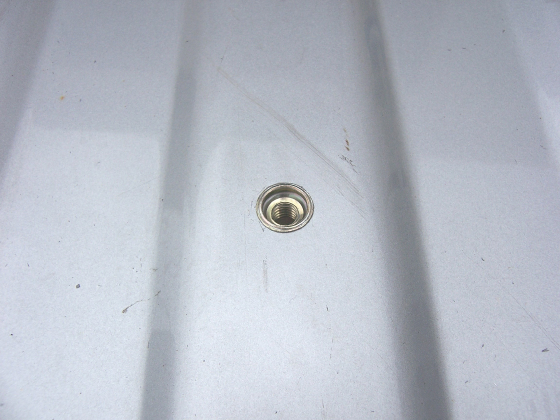

INSTALLATION Drill 4 holes and install 4 flush mounted rivet nuts into the pickup bed. (Picture shows rivet nut installed). The unit is then attached with bolts. Then, route the power cable to the truck's battery. All necessary mounting hardware and electrical cable are provided with the system.
SHIPPING Shipped via Truck Fully Assembled, Ready to Install
Shipped on a 4' x 8' pallet. Requires the use of a forklift to remove from freight truck.
PRODUCT LIABILITY INSURANCE Yes
PATENTED Yes
ORDER SHIPPED Within 24 hours under most conditions.
VIDEO & More PHOTOS
Video may take a few moments to download.
Video shows a Harley Davidson motorcycle loading into and unloading from a Ford F150 6'-6" length bed pickup.
Turn volume down to remove the electric winch noise, if desired.

MOTORCYCLE LOADING

MOTORCYCLE UNLOADING

More PHOTOS



PRICES & ORDER INFO
