WARNING

1. Hitch carrying capacity is determined by a rating provided with the hitch. DO NOT EXCEED THIS RATING.

2. Vehicle's carrying capacity is a function of it's size and design. We have prepared a chart to assist with vehicle carrying capacity. DO NOT EXCEED LIMITS SHOWN IN CHART. Click here for Vehicle Carrying Capacity Chart.

VERSAHAUL ATV, Go-Cart Lift

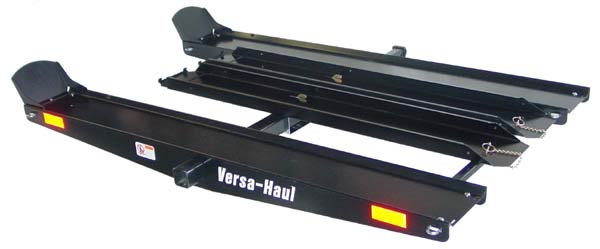

VERSAHAUL ATV, Go-Cart Lift with Ramp - Model VH90 RO

Features

Fits any Class III or Class IV Hitch. Powder coated finish. Easily stores away. Boxed for UPS shipping.



Includes

Anti-tilt locking device; 2" x 2" x 44" holding shaft; Two 9" x 71.5" carrier tracks; Two rail stops; 2 reflectors One loading ramp kit.



Not Included

Taillight Kit is available as an option. Some States require a Taillight Kit. Click here for Taillight Kit Details.; Tie down straps.



Specifications

2 Boxes; One box at Shipping weight - 116 Lbs with Box Dimensions 10.25" x 12" x 73". Second box at shipping weight of 36 Lbs with Box dimensions 4.75" x 9.25" x 72.5". Carrier Hauling Capacity - 700 Lbs. Max



Limitations

Versa-Haul Weight Limit - 700 Lbs. Max

Hitch Weight Limit - Most Class III hitches are rated for 500 Lbs. However, you must check rating noted on your specific hitch for actual rating.

Vehicle Weight Limit - Your vehicle may be limited to a carrying capacity less than the hitch weight limit. See Vehicle Carrying Capacity Chart and WARNING below.

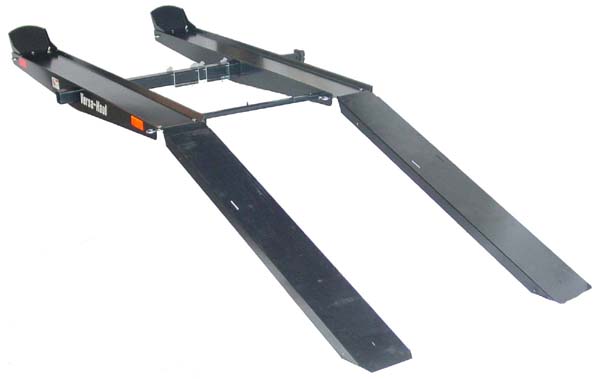

VERSAHAUL ATV Lift (Shown with ramp extended)



WARNING

1. Hitch carrying capacity is determined by a rating provided with the hitch. DO NOT EXCEED THIS RATING.

2. A Vehicle's carrying capacity is a function of it's size and design. We have prepared a chart to assist with vehicle carrying capacity. DO NOT EXCEED LIMITS SHOWN IN CHART. Click here for Vehicle Carrying Capacity Chart.
