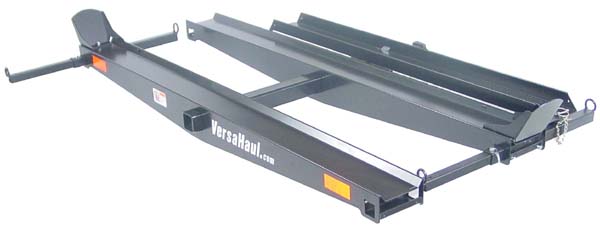

VERSAHAUL Double Motorcycle Lift with Ramp - Model VH55DM RO

FEATURES & PRODUCT INFORMATION

Features

Included

Specifications
  • Fits any Class III or IV hitch
  • Powder coated finish
  • Stores away easily
  • Packaged for UPS shipping
  • Wheel stops can be adjusted to center smaller bikes
  • Distance between rails is adjustable
  • Tie-down tubes can be collapsed inside carrier
  • Anti-tilt locking bracket
  • 2in. x 2in. x 36in.. holding shaft
  • Four retractable tie down bars
  • Two 6.5in. x 71.5in. carrier tracks
  • Two wheel stop
  • Two reflectors
  • One ramp kit
  • Approximate shipping weight - 135 lbs.
  • Carrying Capacity - 600 lbs.
  • Length of carrier rails - 71.5in.
  • Width of carrier rails - 6.5in.
  • Width of ramp - 5.5in.
  • Length of ramp - 60in.



Not Included



LIMITATIONS

Carrier Load Capacity

Hitch Load Capacity

Vehicle Carrying Capacity
  • VH-55DM RO - 600 Lbs. total weight on carrier. 500 Lbs. total weight on one rail.

Hitch carrying capacity is determined by a rating provided with the hitch. DO NOT EXCEED THIS RATING.

  • Most Class III hitches - 500 Lbs.
  • Most Class IV hitches - 1000 Lbs.
A Vehicle's carrying capacity is a function of it's size and design. We have prepared a chart to assist with vehicle carrying capacity. DO NOT EXCEED LIMITS SHOWN IN CHART. Click here for Vehicle Carrying Capacity Chart.

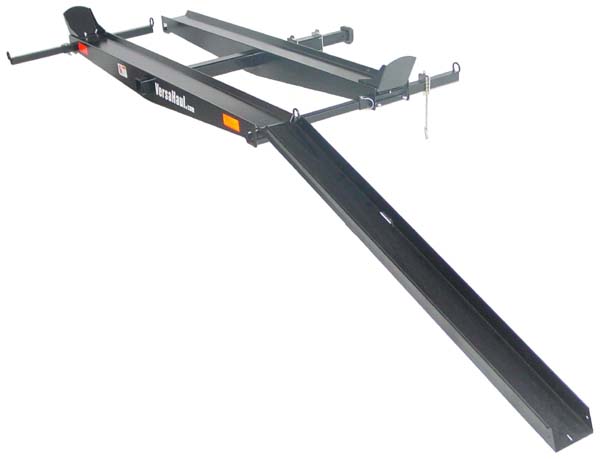

VERSAHAUL Double Motorcycle Lift (Shown with ramp extended)
