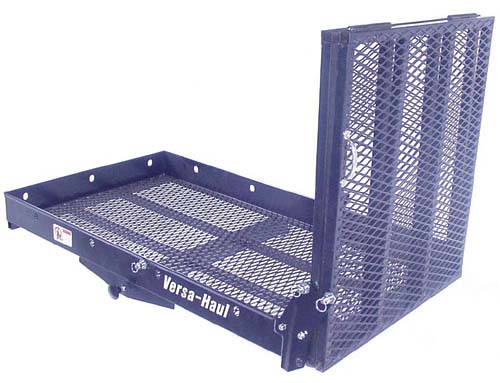

SPECIFICATIONS - MOBILITY SCOOTER CARRIER

  • 60 in. center folding ramp
  • Ramp easily locks into a folded upright position with spring pull locks
  • Ramp folds into a flat position when not in use
  • Ramp can be removed
  • Carrier tilts up when not in use. This carrier has multiple tilted positions.
  • Carrier comes standard with both class II(1-1/4") and class III (2") hitch inserts.
  • 14 slots for tie down hooks
  • Tough powder coat finish
  • Tray has a 48 in. x 27.5 in. of carrying area
  • Anti-tilt locking device
  • Ramp handle
  • Approx. Shipping Wt.: 115 lbs.
  • Carrying Capacity Unit: 500 lbs.
  • Length of carrier tray: 49 in.
  • Width of carrier tray: 28 in.
  • Height of carrier tray: 6 in.
  • Length of ramp: 60 in.
  • Width of ramp: 27.5 in

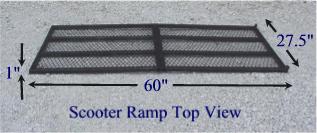

Ramp Dimensions: 60"L x 27.5"W x 1"H

Ramp Weight: 30lbs.



Click Here to Order

NOTE: The Vehicle Carrying Capacity is determined using a formula that factors in the carrier and mobility scooter weight extended behind the hitch as well as the effect on spring compression. The leveraged force creates a mechanical disadvantage. For example, a weight of 300 lbs may exert 500 lbs on the hitch. In addition, the leveraged force may cause complete spring compression with subsequent adverse effects to your vehicle's handling characteristics. Auto ride suspension, air bags, and other suspension stiffening devices will increase your vehicle's carrying capacity. In their absence, however, be sure to contact us for Vehicle Carrying Capacity to avoid dangerous overloading.
